If you have upgraded your power adapter or you are borrowing a charger from another Surface device,
it is normal to ask: “Is it safe to use a higher wattage charger on a Surface Pro?”
In most cases, yes – it is safe, as long as the voltage, connector and quality are correct.
This article explains why, and how to choose the right replacement charger.

1. Understanding wattage on a Surface Pro charger

Charger power is rated in watts (W), which is the product of voltage and current:
W = V × A. Most Surface Connect adapters output around 15V and differ mainly in the
maximum current they can safely supply (for example 2.6A vs 4A).

The important point is that your Surface Pro decides how much power it draws. A higher wattage
charger can provide more power if needed, but it does not “force” extra power into the device.
As long as:

• The voltage matches the device requirements (typically 15V for Surface Connect).
• The connector type is correct (Surface Connect or approved USB-C PD).
• The charger is a reputable, protected design.

…a higher wattage rating is normally safe and often beneficial.

2. When is a higher wattage Surface Pro charger safe?

It is generally safe to use a higher wattage charger on your Surface Pro if:

• The adapter uses the Surface Connect magnetic connector (or supported USB-C PD for newer models).
• The output voltage is the same as the original (for example 15V).
• The charger comes from a trusted supplier and includes protection (OVP, OCP, OTP, short-circuit protection).

For example, using a 65W Surface Connect adapter on a device that originally shipped with a 44W charger
is normally safe. The 65W adapter can deliver more power if required (for heavier workloads or docking),
but your Surface will only take what it needs.

3. Real-world examples: 39W vs 44W vs 65W Surface Connect chargers

Here are three typical Surface Connect charger ratings and how they fit into this “higher wattage” question.

15V 2.58A 44W Surface Connect adapter – standard everyday rating

15V 2.6A 39W “Model 1963” adapter – lower wattage reference point

15V 4A 65W Surface Connect adapter – safe “higher wattage” upgrade

Moving from 39W or 44W to a 65W adapter (with the same 15V output and Surface Connect plug)
is exactly the kind of higher wattage upgrade that is normally safe and often recommended.

4. When can higher wattage be a problem?

Higher wattage on its own is not dangerous – the problems start when other parameters are wrong:

• Wrong voltage: a charger with a significantly different output voltage
  (not 15V, or incorrect USB-C PD profile) can damage the device.
• Wrong connector: non-Surface connectors, forced into the port, can cause physical
  or electrical damage.
• Poor quality design: cheap, unprotected adapters may not regulate voltage correctly,
  or may lack over-current/over-temperature protection.

That is why you should always choose a Surface-specific charger or a well-specified
USB-C PD adapter from a trusted supplier.

5. Does a higher wattage charger charge my Surface Pro faster?

Sometimes. If your original charger was a limiting factor (for example, a low-wattage adapter
struggling when the device is under heavy use), a higher wattage charger can:

• Charge the battery more reliably while you are working.
• Reduce or eliminate “battery still draining while plugged in” issues.
• Provide better stability with docks, external monitors and USB devices attached.

However, once the charger is no longer the bottleneck, going even higher in wattage will not
necessarily make it charge faster – the Surface Pro’s charging circuitry still controls the limit.

6. Summary: is it safe to use a higher wattage charger on a Surface Pro?

• Yes, it is usually safe to use a higher wattage charger on a Surface Pro, provided
  the voltage, connector type and quality are correct.
• Upgrading from 39W or 44W to a 65W Surface Connect adapter is a common, safe choice that
  can improve stability under load.
• Never downgrade to a significantly lower wattage than the original specification.
• Avoid “universal” or non-specific adapters that do not clearly list compatible Surface models,
  voltage and protection features.

If you choose a properly specified higher-wattage Surface charger, your device will only draw the
power it needs – giving you safer, more reliable charging without putting your Surface Pro at risk.

Many users ask: “Can I charge my Surface Pro with USB-C?” The answer is:
some Surface Pro models can charge via USB-C Power Delivery (PD), while older
models can only charge through the magnetic Surface Connect port. Whether USB-C is an option
for you depends on which Surface Pro you own and the type of USB-C charger you use.

1. Which Surface Pro models support USB-C charging?

USB-C charging is only supported on newer Surface Pro generations that have a USB-C port
with Power Delivery. In general:

• Surface Pro 3, 4, 5 (2017), 6 – no native USB-C charging.
  These models must be charged via the Surface Connect port.
• Surface Pro 7, 7+, 8, 9 and Surface Pro X – support charging via
  Surface Connect and also via USB-C Power Delivery (PD).

If your Surface Pro does not have a USB-C port, or if the port is data-only (no PD),
you cannot charge it with USB-C and must use a Surface Connect charger.

2. What kind of USB-C charger do I need?

Even on compatible models, not every USB-C adapter will work. To charge a Surface Pro
over USB-C, the charger should:

• Support USB-C Power Delivery (PD) – not just “fast charge” for phones.
• Provide at least 45 W output; 60–65 W is recommended for comfortable use.
• Offer a 15 V or 20 V PD profile so the Surface can negotiate the correct voltage.
• Be paired with a high-quality, e-marked USB-C cable rated for the required power.

Small phone chargers (18–25 W) usually cannot power a Surface Pro properly; at best they
will charge very slowly, and at worst they will not charge at all while you are working.

3. Is USB-C a full replacement for the original Surface charger?

For supported models, a good USB-C PD charger can be a very useful option – especially
for travel or hot-desking. However, there are a few limitations:

• Performance under load: with a low-wattage USB-C adapter, the battery may
  still drain slowly while running demanding apps or external displays.
• Cable quality matters: poor-quality USB-C cables can cause unstable charging.
• Compatibility varies: not all third-party USB-C chargers advertise their PD
  profiles clearly, which makes matching them to Surface requirements harder.

For daily use and maximum reliability, many users still prefer a dedicated
Surface Connect charger matched to their device’s power needs.

4. Recommended Surface Connect chargers (if you don’t want to rely on USB-C)

If you would rather keep USB-C as a backup and use the standard Surface Connect port
for main charging, here are examples of common, professional-grade adapters:

15V 2.58A 44W Surface Connect adapter – balanced everyday choice

15V 2.6A 39W “Model 1963” adapter – compact travel option

15V 4A 65W Surface Connect adapter – best for demanding workloads

5. Safety tips and conclusion

You can charge many newer Surface Pro models with USB-C – but only with a proper
USB-C Power Delivery charger that meets Microsoft’s power requirements. For best results:

• Always confirm that your specific Surface Pro model supports USB-C charging.
• Use a PD-capable USB-C charger with adequate wattage and a high-quality cable.
• For long-term, everyday use, consider a dedicated Surface Connect charger matched
  to your device.

Used correctly, USB-C is a flexible and convenient way to top up your Surface Pro –
but a well-specified Surface Connect adapter remains the most predictable option for
stable, full-speed charging.

Choosing the right charger for your Surface Pro is not just about finding a plug that fits the port.
You need to match the connector type, wattage (power rating) and
supported models to avoid slow charging, overheating or damage to your battery.
This guide shows you, step by step, how to identify the correct Surface Pro charger.

1. Step one: confirm your exact Surface Pro model

Different Surface Pro generations can use similar-looking chargers but with different power ratings.
Always start by confirming the exact model name:

1. Open Settings in Windows.
2. Go to System > About.
3. Look under Device specifications for names like:
   Surface Pro 4, Surface Pro 6, Surface Pro 7,
   Surface Pro 8, Surface Pro 9, Surface Pro X, etc.

Write this down. A charger that is perfect for a Surface Pro 7 may not be ideal for an older Surface Pro 3,
even if the connector looks the same.

2. Step two: check how your Surface Pro charges

Surface Pro devices use one or both of these charging methods:

• Surface Connect – the slim magnetic blade connector on the side of the device.
• USB-C Power Delivery (PD) – available on newer models with a USB-C port that supports charging.

In general:

• Surface Pro 3, 4, 5 (2017), 6 – use Surface Connect only (no USB-C charging).
• Surface Pro 7, 7+, 8, 9 and Surface Pro X – support Surface Connect
  and USB-C PD.

If you want the most reliable, “OEM-like” experience, choose a Surface Connect charger matched
to your device’s power needs. USB-C PD is excellent as an extra option or for travel.

3. Step three: read the rating on your old charger (if available)

If you still have the original charger, check the label on the power brick. You should see:

• Output voltage (e.g. 15V)
• Output current (e.g. 2.58A, 2.6A, 4A)
• Wattage (e.g. 39W, 44W, 65W)

Common Surface Connect ratings include:

• 39W (15V 2.6A) – compact, travel-friendly power level.
• 44W (15V 2.58A) – classic everyday Surface Pro charger.
• 65W (15V 4A) – for higher-power models and heavier workloads.

Your replacement charger should match or exceed the original wattage.
Never downgrade to a lower wattage, as it may cause slow charging or battery drain while in use.

4. Choosing between 39W, 44W and 65W Surface Connect chargers

Here are three professional-grade Surface Connect adapters and when each is the best fit.

15V 2.58A 44W – standard Surface Pro charger for everyday use

15V 2.6A 39W – compact option for lighter workloads and travel

15V 4A 65W – high-power charger for demanding Surface setups

Using a 65W charger on a device that originally shipped with a 39W or 44W adapter is safe –
the Surface Pro will only draw the power it needs. However, you should avoid using a
lower-wattage charger on a device that expects more power.

5. What if I want to use USB-C instead?

Some Surface Pro models (7, 7+, 8, 9, Pro X) can also charge via USB-C Power Delivery (PD).
If you go this route, make sure the USB-C charger:

• Supports USB-C PD (not just basic USB charging).
• Provides at least 45W, ideally 60–65W.
• Offers a 15V or 20V PD profile.
• Is used with a high-quality, e-marked USB-C cable.

Even with USB-C available, many users still rely on a Surface Connect charger as their primary adapter
and treat USB-C as a flexible backup.

6. Quick checklist: choosing the right Surface Pro charger

• Identify your model: Surface Pro 3, 4, 5, 6, 7, 8, 9, Pro X, etc.
• Connector: Surface Connect is required for all; USB-C PD is optional on newer models.
• Wattage: match or exceed the original (39W / 44W / 65W are common).
• Quality: choose a charger with proper protection (OVP, OCP, OTP) from a trusted supplier.

Once you know your model, connector type and wattage, picking the right Surface Pro charger
becomes straightforward. A correctly specified adapter will give you stable charging, protect
your battery and keep your Surface ready for work, study and travel.

When people ask “How can I charge my Surface Pro without a charger?”, they usually mean:
“without the original charger that came with the device.” You still need a compatible power source,
but you do have several safe alternatives – especially if you own a newer Surface Pro model.
This guide explains your options and when it’s time to buy a proper replacement charger.

1. Know your Surface Pro model first

Your charging options depend on the exact Surface Pro generation:

• Surface Pro 3, 4, 5 (2017), 6 – charge via Surface Connect only
  (no native USB-C charging).
• Surface Pro 7, 7+, 8, 9 and Surface Pro X – support both
  Surface Connect and USB-C Power Delivery (PD).

You can confirm the model under Settings > System > About in Windows.
Once you know the model, you can choose the safest alternative power source.

2. Safe alternatives if you don’t have the original charger

Option A – USB-C Power Delivery charger (for newer models)

If you own a Surface Pro 7 / 7+ / 8 / 9 or Pro X, you can often use a
USB-C PD laptop charger instead of the original Surface Connect adapter.
To work reliably, the USB-C charger should:

• Support USB-C Power Delivery (PD), not just basic USB charging.
• Provide at least 45 W output (60–65 W is ideal).
• Offer a 15 V or 20 V PD profile.
• Be used with a high-quality, e-marked USB-C cable.

Small phone chargers (e.g. 18–25 W) usually cannot power a Surface Pro properly and should be avoided.

Option B – Surface Dock / Surface Dock 2

If you have a Surface Dock or Surface Dock 2, it already includes a
high-power adapter and charges via the Surface Connect port. Connecting your Surface Pro
to the dock lets you charge the device and use extra ports (USB, Ethernet, displays) at the same time.
For desk use, the dock can fully replace the original power brick.

Option C – USB-C power bank or USB-C monitor/dock (newer models)

Again for Surface Pro 7 / 7+ / 8 / 9 and Pro X, you may be able to charge using:

• A USB-C PD power bank with at least 45 W PD output.
• A USB-C monitor or USB-C docking station with PD, typically 60–65 W.

Always verify that the PD wattage and voltage profiles meet your Surface Pro’s requirements.

Option D – Borrow a compatible Surface Connect charger

For all Surface Pro models, the simplest short-term solution is to borrow a genuine or
high-quality Surface Connect charger from another user. Make sure:

• The connector is the slim magnetic Surface Connect blade.
• The wattage is the same or higher than your original adapter.
• The cable and plug show no signs of damage or overheating.

3. Recommended replacement Surface Connect chargers

If you frequently use your Surface Pro away from the desk, a dedicated Surface Connect charger is
still the most reliable long-term solution. Below are examples of common power levels used across
many Surface Pro and other Surface devices.

15V 2.58A 44W Surface Connect adapter – classic everyday choice

15V 2.6A 39W “Model 1963” adapter – compact travel option

15V 4A 65W Surface Connect adapter – best for heavier workloads

4. What you should avoid

To protect both your Surface Pro and your safety, avoid:

• DIY experiments with cut cables, bare wires or universal bricks not designed for Surface.
• Very low-power USB-C phone chargers that cannot meet the device’s power needs.
• Non-certified adapters without clear voltage, current and protection specifications.

These can cause unstable charging, device damage or, in extreme cases, fire and electric shock hazards.

5. Bottom line: you still need a proper charger

You cannot truly charge a Surface Pro with no charger at all – only without the original one.
For newer models, USB-C PD, Surface Dock and power banks are useful alternatives, but the most stable,
long-term solution is a correctly specified Surface Connect charger with the right voltage and wattage.
Choose a high-quality replacement, and your Surface Pro will remain reliable for work, study and travel,
even long after the first charger is gone.

If you have owned more than one Microsoft Surface device, it is natural to wonder:
“Do all Surface Pro models use the same charger?” The short answer is no.
Most Surface Pro generations share the same type of connector (the magnetic Surface Connect port),
but they do not all use identical power adapters. Different models are designed for different power
requirements, and newer devices can also charge via USB-C Power Delivery (PD).

In this guide, we will break down how Surface Pro charging works, which models can share a charger,
what wattage you really need, and how to pick a safe replacement adapter.

1. Surface Connect vs USB-C: two charging “worlds”

Almost every Surface Pro generation from Surface Pro 3 onwards charges via the slim magnetic
Surface Connect port. Some newer models also support USB-C Power Delivery (PD), which
allows charging through a USB-C port as well.

• Surface Connect charger – the classic magnetic blade connector on the side of the device.
  This is still the primary and most common way to charge any Surface Pro.
• USB-C PD charger – supported by newer models such as Surface Pro 7, 7+, 8, 9 and Surface Pro X.
  These can charge from a properly specified USB-C PD adapter with the correct voltage and wattage.

So even before we discuss wattage, there are two questions:

1. Does your Surface Pro have a Surface Connect port? (Almost all do.)
2. Does your Surface Pro also support USB-C PD charging? (Only newer generations.)

2. Do all Surface Pro models use the same Surface Connect charger?

From a physical connector standpoint, most Surface Pro devices that use Surface Connect can plug
into the same style charger. However, not all adapters are identical internally. They vary by:

• Wattage (power rating) – e.g. 39 W, 44 W, 65 W.
• Current output – e.g. 15 V 2.58 A, 15 V 2.6 A, 15 V 4 A.
• Intended device class – smaller tablets vs higher-power Surface Pro and Surface Laptop models.

This means:

• Many Surface Pro models can share a charger as long as the connector is Surface Connect and
  the wattage is equal to or higher than the original.
• They do not all use exactly the same charger – a 39 W adapter and a 65 W adapter are
  not interchangeable in terms of performance, even though they fit into the same port.

As a rule of thumb:
it is safe to use a higher-wattage Surface Connect charger on a lower-power device,
but not the other way round.

3. Common Surface Pro charger wattages (with real-world examples)

Surface chargers are typically rated around 39–44 W for lighter devices and about
65 W for more demanding models or multi-purpose use.
Here are three example adapters that reflect the most common power levels:

15V 2.58A 44W Microsoft Surface Connect AC adapter

15V 2.6A 39W Microsoft 1963 Surface Connect AC adapter

15V 4A 65W Microsoft Surface Connect AC adapter

4. Can I share one Surface charger across different Surface Pro models?

In many situations, yes – as long as you follow these rules:

• Match the connector: the adapter must use the Surface Connect magnetic blade.
  Do not try to use barrel or unofficial connectors.
• Equal or higher wattage: a 65 W charger can safely power a device that came
  with 44 W, but using a 39 W charger on a 65 W device may cause slow charging or battery drain
  while in use.
• Use quality replacements: choose chargers with built-in over-voltage, over-current
  and over-temperature protection to safeguard your device.

In other words, the connector family is shared, but the ideal wattage is not identical for every model.
If you only own one Surface Pro, match the original specification. If you own multiple devices,
a higher-wattage adapter (such as 65 W) often works well as a “universal” Surface Connect charger
for the household or office.

5. What about USB-C chargers for Surface Pro?

Newer Surface Pro models (such as Surface Pro 7, 7+, 8, 9 and Surface Pro X) can also charge from
a USB-C PD adapter. However:

• Not all USB-C laptop chargers are the same.
• You need proper Power Delivery (PD) support, usually with a 15 V or 20 V profile.
• The adapter should provide at least 45 W, and ideally 60–65 W for smooth use.

Older models (for example Surface Pro 3–6) cannot charge via USB-C at all and must use
a Surface Connect charger. Even for newer devices, many users still prefer Surface Connect
for everyday use and keep USB-C as a flexible backup option.

6. How to choose the correct charger for your Surface Pro

If you are unsure which charger your Surface Pro needs, follow these steps:

1. Identify your exact model name under Settings > System > About
   (for example “Surface Pro 6”, “Surface Pro 7”, “Surface Pro 9”).
2. Check the rating on your old charger if you still have it:
   look for markings such as 15V 2.58A 44W or 15V 4A 65W.
3. Decide whether you want Surface Connect only or also USB-C flexibility
   (for newer models).
4. Use a specialist parts store that lists compatible models and clear
   output ratings on each product page.

On our Microsoft charger category, you can filter by type
and open each charger page to review compatible devices and technical specifications before you buy.

7. Conclusion: do all Surface Pro models use the same charger?

• Physically: most Surface Pro models share the same Surface Connect connector.
• Electrically: they use different wattages (e.g. 39 W, 44 W, 65 W) and some also support USB-C PD.
• Compatibility: a higher-wattage Surface Connect charger can usually be shared safely across models;
  a lower-wattage unit is not ideal for more demanding devices.
• Best practice: choose a charger that matches or exceeds your original wattage and is clearly listed as compatible with your exact Surface Pro model.

So while your Surface Pro may not use exactly the same charger as every other Surface Pro, finding
a safe and compatible replacement is straightforward once you know your model and power requirements.
A correctly specified charger will keep your Surface running reliably for work, study and travel – with
no surprises when the battery runs low.

The Lenovo ThinkPad T480 is known for its reliability and excellent dual-battery design. But if one day you plug in the charger and see no charging light, no battery icon change in Windows, and the laptop doesn’t respond, it’s easy to panic.

This is exactly the situation many users describe as “lenovo t480 not charging no light”. In this guide, we’ll walk through what that usually means, how to diagnose the problem step by step, and when it’s time to replace the charger or the batteries.

---

1. What does “Lenovo T480 not charging, no light” usually mean?

The T480 normally shows power/charging status using:

• A small power / charging LED (near the DC-in port or on the lid/keyboard area, depending on model and settings).
• The battery icon in Windows (plug symbol when charging).

When you experience “lenovo t480 not charging no light”, it typically looks like this:

• You plug in the adapter, but no LED turns on.
• The laptop may not power on at all, or it runs on battery but does not detect AC power.
• Windows does not show “plugged in, charging” – it behaves like the charger isn’t even connected.

In other words, the laptop is not seeing any power input. That usually points to one of three things:

1. Faulty charger or cable
2. Problem with the charging port / DC jack / USB-C port
3. A more serious issue with batteries or mainboard

---

2. Step 1 – Basic checks (don’t skip these)

Before diving into advanced diagnostics, rule out the simple stuff:

• Try another wall socket or power strip.
• Unplug the adapter from both the laptop and wall, then plug it back in firmly.
• Check the entire cable length for cuts, twists or burn marks.
• If you’re using a USB-C charger, verify that it’s a 65W (20V 3.25A) USB-C PD power adapter, not a low-power phone charger.

If none of your power LEDs turn on and Windows doesn’t show “plugged in”, the next suspect is the charger itself.

---

3. Step 2 – Test with a known-good charger

The quickest way to separate a charger problem from a laptop problem is to borrow or use another compatible adapter:

• For traditional charging, the T480 uses a Lenovo Slim Tip (rectangular) adapter, typical ratings 65W or 90W.

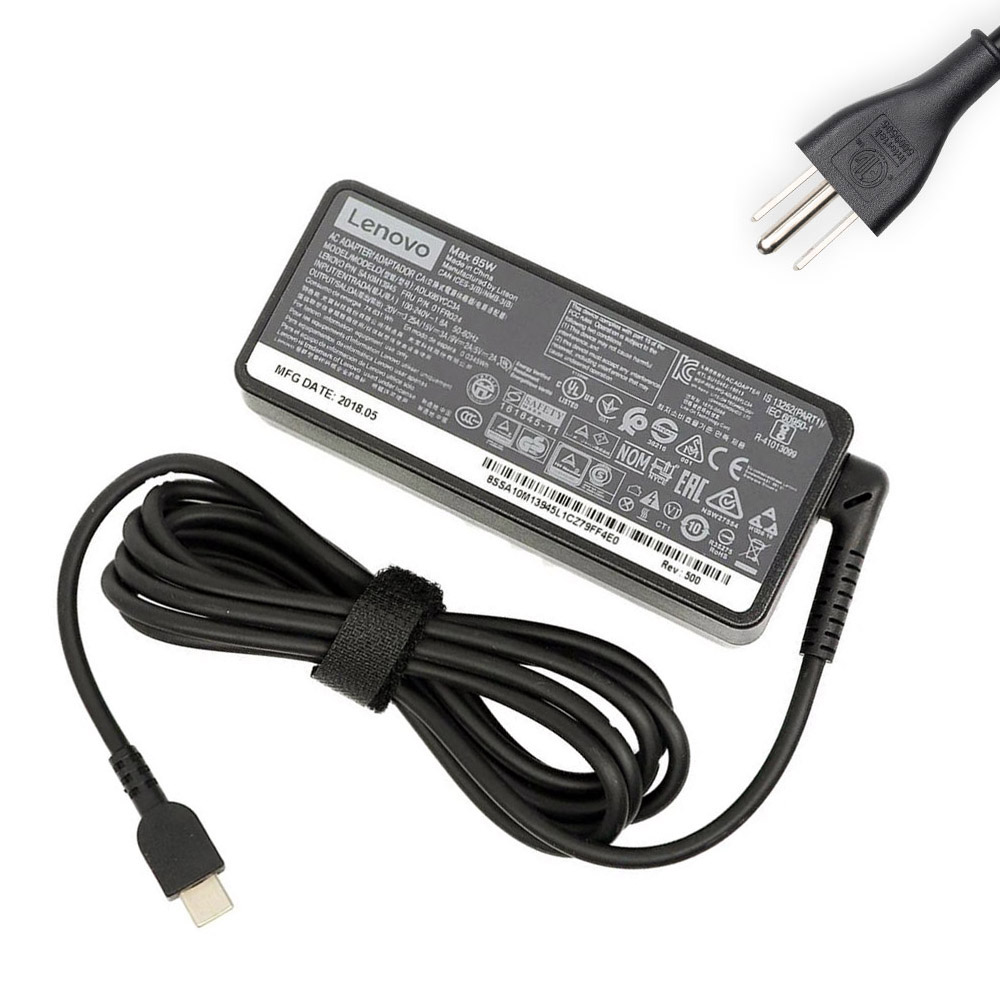

• Many T480 units can also charge via USB-C / Thunderbolt 3 using a 65W USB-C PD adapter.

If your original adapter is damaged, missing or clearly not working, replacing it is the easiest fix for the “lenovo t480 not charging no light” issue.

Test scenario: if the T480 immediately shows a charging light and powers on with a different adapter, then your old charger is the problem, not the laptop.

---

4. Step 3 – Inspect the charging port

If even a known-good adapter doesn’t turn on any light, take a close look at the laptop’s power input:

4.1 DC-in port (Slim Tip)

• Check for bent plastic, damaged contacts or foreign objects inside.
• Make sure the plug fits firmly and doesn’t feel loose or wobbly.

4.2 USB-C charging port

• Look for dust, lint or corrosion inside the USB-C port.
• Use a soft, dry brush or compressed air (carefully) to clean it – never use metal tools.

If the port is cracked, badly worn or the plug only works at a specific angle, the “lenovo t480 not charging no light” problem might be caused by a damaged DC jack or USB-C port, which usually requires professional repair.

---

5. Step 4 – Check the batteries (internal + external)

The T480 uses Lenovo’s Power Bridge system with two batteries:

• Internal battery: 24Wh pack inside the laptop
• External battery: removable rear pack (24Wh / 48Wh / 72Wh)

If the laptop still has some charge and can boot, but you see no charging light when you plug in, you should:

1. Open Lenovo Vantage (or Commercial Vantage).
2. Check if both batteries are detected (Battery 1 & Battery 2).
3. Look at full charge capacity and health status (Good / Fair / Poor).

If a battery shows 0% all the time, “not detected”, or extremely low capacity, it may be failing and can contribute to charging problems – especially if the laptop turns off as soon as AC power is removed.

Internal T480 battery (24Wh)

External T480 battery options (61 series)

If the external battery is worn out or faulty, you may see strange percentage jumps, no charging indication, or the laptop dying instantly when unplugged. The T480 supports several external 61-series packs:

---

6. Step 5 – Perform a power reset (EC reset)

Sometimes the “lenovo t480 not charging no light” symptom is caused by a stuck embedded controller (EC) or static in the power circuitry. A hard reset can help:

1. Shut down the laptop completely.
2. Unplug the charger.
3. Remove the external battery.
4. Press and hold the power button for 20–30 seconds to discharge residual power.
5. Reconnect the charger (without the external battery) and try to power on.
6. If successful, shut down again, reinstall the external battery, and test charging behaviour once more.

If the laptop still shows no charging light and will not power on even with a known-good adapter, you may be facing a hardware fault beyond the battery or charger.

---

7. When it’s not the battery or charger

After testing with a good adapter, checking ports, resetting power and reviewing battery health, there are still cases where a T480 will not charge and shows no light because of:

• A damaged DC-in jack or USB-C port soldered to the board
• Failure in the charging IC or power circuitry on the motherboard

Symptoms in these cases include:

• No LED light with any known-good charger
• No reaction when pressing the power button, even with batteries removed and AC connected
• Occasional flicker of the LED if the connector is pressed in a certain direction

At this point, the issue is almost certainly hardware-level. The best next step is to contact a qualified laptop repair service or Lenovo support to evaluate the DC jack or mainboard. Replacing batteries or chargers alone will not fix a physically broken power circuit.

---

8. Summary – fixing “Lenovo T480 not charging, no light”

When your Lenovo T480 shows no charging light and appears completely unresponsive, work through these steps:

• Test a different wall socket and adapter (ideally a known-good 65W Lenovo Slim Tip or USB-C charger).
• Inspect and clean the power ports (Slim Tip and/or USB-C).
• Check battery health in Lenovo Vantage if the laptop can still boot.
• Perform a power reset (remove external battery, hold power, reconnect).
• Replace failing internal or external batteries and a faulty charger if needed.

In many cases, “lenovo t480 not charging no light” is ultimately caused by a simple adapter failure or worn-out battery – both of which you can replace. Once the power path is healthy again, the T480’s dual-battery design can deliver the long, stable runtime that made this ThinkPad so popular in the first place.

The Lenovo ThinkPad T480 is a workhorse business laptop, and one of its best features is the dual-battery Power Bridge design: a built-in internal battery plus a removable external battery. But when you suddenly see messages like “ThinkPad T480 battery not charging” or “0% available, plugged in, not charging”, that flexibility can become confusing.

This guide walks you through the most common causes of a ThinkPad T480 battery not charging and shows you how to fix them step by step. We’ll cover quick checks, software settings, BIOS options, and what to do when it’s time to replace the internal or external battery packs.

---

1. How the T480 battery system works (and why this matters)

Before you troubleshoot any ThinkPad T480 battery not charging issue, it helps to understand the battery layout:

• Internal battery – 3-cell, 24 Wh pack inside the laptop (usually FRU 01AV421).
• External battery – removable rear pack from the ThinkPad 61 series, typically:
  • 24 Wh (Battery 61 – slim, 3-cell)
  • 48 Wh (Battery 61+ – 6-cell)
  • 72 Wh (Battery 61++ – extended 6-cell)

Windows and Lenovo Vantage usually show these as Battery 1 and Battery 2. When you see that your ThinkPad T480 battery is not charging, you need to check whether the problem is with:

• Only the external battery
• Only the internal battery
• Or both, which may point to the charger, the power jack or the mainboard

---

2. Quick hardware checks for “ThinkPad T480 battery not charging”

2.1 Confirm the charger and power source

• Make sure you’re using a genuine Lenovo charger with the correct wattage (65W or 90W for most T480 setups).
• Try another wall socket or power strip.
• If possible, test with a second known-good charger. If the battery starts charging with another adapter, your original charger is the problem.

2.2 Check the power jack and cable

• Inspect the charging plug and the port on the laptop for damage, bent pins or debris.
• Gently wiggle the connector. If the charging light flickers or drops, the jack or cable may be loose or worn.

2.3 Reseat the external battery

• Shut down the laptop and disconnect the charger.
• Turn the T480 over, slide the latches and remove the external battery.
• Check the contacts for dust or corrosion; gently clean with a dry cloth.
• Reinsert the battery until it clicks firmly into place.
• Reconnect the charger and boot the laptop.

After these steps, check again if the ThinkPad T480 battery not charging symptom persists for one or both batteries.

---

3. Check Windows and Lenovo Vantage for charging status

3.1 Use the Windows battery icon

• Click the battery icon in the taskbar.
• Look for messages like:
  • “Plugged in, charging” – normal
  • “Plugged in, not charging” – could be settings, thresholds or battery wear
  • “0% available (plugged in, not charging)” – battery may be failing or not detected correctly

3.2 Use Lenovo Vantage / Commercial Vantage

Lenovo’s tool can show detailed status for both batteries:

• Open Lenovo Vantage > Device > Power or Battery.
• Check each battery’s:
  • Charge level
  • Condition / Health (Good, Fair, Poor)
  • Cycle count (if available)
  • Whether it’s currently charging, discharging or “not charging”.

If Vantage shows that one pack is “Not detected” or has extremely low full charge capacity, your ThinkPad T480 battery not charging issue may simply be a worn-out battery that needs replacement.

---

4. Common software causes and fixes

4.1 Battery charge thresholds / conservation mode

One of the most common reasons users see “ThinkPad T480 battery not charging” even with a good battery is charge thresholds. Lenovo allows you to set a maximum charge (e.g. 55–60%) to extend battery lifespan.

In Lenovo Vantage, check for options like:

• Conservation Mode or “Battery charge threshold”
• Settings such as “Start charging at 50%, stop at 60%”

If your battery is already at or above the stop threshold, Windows will show “plugged in, not charging” – this is normal behaviour, not a fault. To test:

1. Temporarily disable conservation mode or reset thresholds to 100%.
2. Unplug, wait a few seconds, then plug the charger back in.
3. See if the battery starts charging again.

4.2 Power cycle the laptop

A simple power reset can clear minor firmware or EC (embedded controller) glitches:

1. Shut down the laptop completely.
2. Disconnect the charger.
3. Remove the external battery.
4. Press and hold the power button for 20–30 seconds to discharge residual power.
5. Reconnect the external battery and then the charger.
6. Power on the laptop and check charging status.

4.3 Update BIOS and power drivers

• Use Lenovo Vantage or Lenovo’s support website to:
  • Update to the latest BIOS for the T480.
  • Install the latest power management and chipset drivers.
• After updates, restart the system and test charging again.

4.4 Run a battery calibration

Some charging issues come from inaccurate battery calibration rather than a hardware fault. Use Lenovo Vantage’s battery gauge reset (if available) or allow a full discharge/charge cycle under supervision to recalibrate the battery electronics.

---

5. BIOS settings: internal battery disabled?

The T480 BIOS has a “Disable built-in battery” option used for servicing. If this option was triggered and not re-enabled, your internal battery may appear as not charging.

To check:

1. Shut down the laptop.
2. Turn it on and press F1 repeatedly to enter the BIOS.
3. Navigate to the Configuration or Power section (wording can vary by BIOS version).
4. Look for any setting related to Internal battery or “Disable built-in battery”.
5. Ensure the internal battery is enabled.
6. Save changes and reboot.

If the internal battery was disabled, re-enabling it may immediately resolve part of your ThinkPad T480 battery not charging problem.

---

6. When the battery itself is the problem

If you’ve tried the steps above and your T480 battery still won’t charge properly, it’s time to look at battery wear and hardware failure.

Signs your T480 battery needs replacement

• Lenovo Vantage shows Poor or “Battery needs to be replaced”.
• Full charge capacity is much lower than design capacity (for example, 10–15 Wh left out of 24 Wh or 48 Wh).
• Battery never charges above a low percentage (e.g. stuck at 5–10%) even after hours on AC.
• The battery is physically swollen or the case is bulging (in this case, stop using it immediately).

In these situations, no amount of software tweaking will solve the ThinkPad T480 battery not charging symptom. The safest and most reliable fix is to replace the failing battery.

---

7. Replacement options for ThinkPad T480 batteries

7.1 Internal T480 battery – 24Wh 01AV421

The internal 24 Wh pack is your base battery. If it’s worn out, you may experience fast drops when unplugging or failed hot-swaps.

7.2 External slim 24Wh battery – Battery 61 (01AV423)

If your slim external battery no longer charges, or discharges rapidly, replacing it restores the original portable setup.

7.3 External 48Wh battery – Battery 61+ (01AV427)

If you’re replacing a failing external battery anyway, this is a great time to upgrade capacity. The 48 Wh 61+ option offers much better runtime.

7.4 External 72Wh extended battery – Battery 61++

For maximum runtime, especially if you’ve been fighting a weak old battery, the 72 Wh extended 61++ pack is the best choice.

---

8. When it’s not the batteries: adapter, DC jack or mainboard

If:

• You’ve tried another known-good charger, and
• Both internal and external batteries refuse to charge or are not detected properly, even after BIOS and driver updates,

then the issue may be with:

• The DC-in jack (loose or damaged)
• The charging circuitry on the motherboard

At that point, the ThinkPad T480 battery not charging problem is no longer a simple DIY battery swap. It’s best to get help from a qualified repair shop or Lenovo service partner to test the power jack and mainboard.

---

9. Summary

When you see a ThinkPad T480 battery not charging error, don’t panic. Work through these steps in order:

• Check the charger, cable and power jack.
• Reseat the external battery and check charging status in Windows and Lenovo Vantage.
• Look for charge thresholds or conservation mode that intentionally stops charging.
• Update BIOS and power drivers, and perform a power reset.
• Check battery health; if capacity is very low, replace the failing battery (internal, external or both).

With fresh, compatible batteries and correct power settings, the ThinkPad T480 remains one of the most flexible and reliable 14″ business laptops you can own—delivering long runtimes and hot-swappable power long after many other machines would need a full replacement.

The Lenovo ThinkPad T480 is one of those classic business laptops that people still love years after its launch – and a big reason is its excellent battery system. Thanks to Lenovo’s Power Bridge design, the T480 can use an internal battery plus a removable external battery, giving you flexible runtime options from “just enough for meetings” to “all-day and then some”.

But in real life, how long is the battery life on the Lenovo T480? The honest answer is: it depends on which battery combination you use and what you’re doing. In this guide we’ll break down typical runtime estimates, the different battery options, and how to get the best battery life from your T480.

---

1. The T480 battery system in a nutshell

Most ThinkPad T480 configurations use two batteries:

• Internal battery: 24 Wh 3-cell pack (inside the laptop)
• External battery: removable rear 61-series pack, available in:
  • 24 Wh (Battery 61, 3-cell)
  • 48 Wh (Battery 61+, 6-cell)
  • 72 Wh (Battery 61++, 6-cell extended)

The internal and external batteries work together. Total capacity is simply:

• 24 Wh (internal) + external capacity (24 / 48 / 72 Wh)

This leads to three typical total capacities:

• 48 Wh – 24 Wh internal + 24 Wh external
• 72 Wh – 24 Wh internal + 48 Wh external
• 96 Wh – 24 Wh internal + 72 Wh external

---

2. Real-world battery life – what the numbers mean

Battery capacity is measured in Wh (watt-hours). Roughly speaking, a typical office workload on a 14″ business laptop might draw anywhere from 6–10 W on light use and much more under heavy load.

Below are very approximate real-world ranges for a healthy T480, using sensible power settings and moderate brightness:

48 Wh total (24Wh internal + 24Wh external)

• Light office / web / email: around 4–7 hours
• Mixed use (office + calls + some heavy apps): around 3–5 hours
• Heavy load (continuous high CPU, video, compiling): around 2–3 hours

72 Wh total (24Wh internal + 48Wh external)

• Light office / web / email: around 6–10 hours
• Mixed use: around 4–7 hours
• Heavy load: around 3–4.5 hours

96 Wh total (24Wh internal + 72Wh external)

• Light office / web / email: around 8–13+ hours
• Mixed use: around 6–9 hours
• Heavy load: around 4–6 hours

Actual runtime depends on many details: screen brightness, Wi-Fi usage, CPU load, background processes, and of course the age and health of your batteries. A brand-new 96 Wh setup can comfortably be an “all-day laptop” for typical office work. Older or heavily worn packs will last less.

---

3. The internal T480 battery (24Wh)

The internal battery in the T480 is a 24 Wh 3-cell pack. Its job is to provide base power and enable hot-swap: when you remove the external battery, the laptop keeps running from the internal one for a short time so you don’t have to shut down.

If your T480 drops quickly when you unplug or when you swap the external battery, your internal pack may be worn out. You can restore original behaviour with a compatible replacement such as:

---

4. External battery options and their impact on battery life

The removable rear battery is what really determines how long your T480 will last on a charge. Lenovo’s 61-series family gives you three choices:

4.1 24Wh external (Battery 61 – slim profile)

This is the lightest and slimmest option. It barely sticks out from the back of the laptop and keeps the T480 very portable.

• Total capacity with internal: ~48 Wh
• Best for: users who are often near a power outlet, short meetings, commuting

4.2 48Wh external (Battery 61+ – best balance)

The 48 Wh 6-cell battery (61+) is often the sweet spot for T480 owners. It adds a small “bump” at the back, but the extra runtime is significant.

• Total capacity with internal: ~72 Wh
• Best for: office users, students, business travellers who want real “workday” battery life

4.3 72Wh external (Battery 61++ – maximum runtime)

The 72 Wh extended 61++ battery is for people who value runtime above everything else. It increases weight and creates a larger “hump” at the back, but the payoff is serious battery life.

• Total capacity with internal: ~96 Wh
• Best for: long flights, field work, conferences, full days away from power

---

5. Why your T480 battery life might be shorter than expected

If your T480 isn’t lasting as long as it used to, there are a few likely reasons:

• Battery wear: Over time, lithium-ion batteries lose capacity. A 48 Wh pack might only hold 30–35 Wh after a few years.
• Higher screen brightness: Running the display near 100% brightness can noticeably reduce runtime.
• Background processes: Too many apps syncing, indexing or updating in the background will drain the battery faster.
• Heavy workloads: Virtual machines, video editing, large spreadsheets and CPU-heavy apps all draw more power.

You can check your battery health using Lenovo Vantage or by running powercfg /batteryreport in an elevated Command Prompt. If “Full charge capacity” is far below the original “Design capacity”, it’s time to think about replacement.

---

6. Tips to maximise battery life on the T480

To squeeze the most runtime out of your T480, try these simple tweaks:

• Lower screen brightness to a comfortable but not excessive level.
• Use a Balanced or Battery saver power plan when on battery.
• Disable or uninstall apps you don’t need that run in the background.
• Turn off Bluetooth or Wi-Fi if you’re not using them.
• Keep vents clear and avoid overheating – high temperatures accelerate battery wear.

---

7. Summary: how long can a T480 battery really last?

There is no single, fixed number, but you can use this as a quick reference for a healthy Lenovo T480:

• 24Wh internal + 24Wh external (~48Wh): roughly 4–7 hours of light office work.
• 24Wh internal + 48Wh external (~72Wh): roughly 6–10 hours, enough for many workdays.
• 24Wh internal + 72Wh external (~96Wh): roughly 8–13+ hours under light to moderate loads.

If your current battery life is far below these ranges, the reason is usually age and wear, not the design of the T480 itself. The good news: you don’t need a new laptop – just new batteries. By refreshing the internal 24 Wh pack and choosing the external 61-series battery that fits your routine (24 / 48 / 72 Wh), you can bring your T480’s battery life back to what made this ThinkPad so popular in the first place.

The Lenovo ThinkPad T480 is famous for its long battery life and flexible power options. Thanks to Lenovo’s Power Bridge design, it uses an internal battery plus an optional removable external battery. This is great for runtime – but it also means you have more than one battery that can wear out over time.

So a very practical question is: how often should I replace my T480 battery?

The honest answer is: it depends on how you use the laptop. As a rule of thumb, most T480 users will start thinking about battery replacement somewhere around 2–4 years of regular use. Heavy users might need a new battery sooner, while light users can go longer. This guide explains what really affects battery lifespan, the signs that it’s time to replace your T480 batteries, and which options to choose when you’re ready to upgrade.

---

1. How long do T480 batteries normally last?

The T480 uses modern lithium-ion batteries. These don’t suddenly “die” on a specific date; instead, they slowly lose capacity with every charge cycle and every year of use. Several factors influence how long they stay healthy:

• Charge cycles: Every full 0–100–0% cycle counts as one cycle. Most laptop batteries are rated for a few hundred cycles before they drop to around 70–80% of original capacity.
• Heat: High temperatures during heavy CPU loads, gaming or poor ventilation accelerate wear.
• Usage pattern: Always staying at 100% on AC, or frequently running down to 0%, can both stress the cells.
• Age: Even if you don’t use the laptop heavily, batteries naturally degrade over time.

In real-world terms:

• Light users (a few hours per week): Internal and external batteries can often feel acceptable for 3–5+ years.
• Normal office users (daily use): Expect meaningful capacity loss after about 2–4 years.
• Heavy users (long daily sessions on battery): You may see noticeable degradation after 1.5–3 years.

---

2. The T480’s dual-battery layout: internal + external

Most T480 configurations ship with:

• A 24Wh internal battery (3-cell, typically FRU 01AV421)
• One of several external 61-series batteries:
  • 24Wh 3-cell (Battery 61) – slim and light
  • 48Wh 6-cell (Battery 61+) – balanced option
  • 72Wh 6-cell (Battery 61++) – extended runtime

Because there are two batteries working together, you don’t necessarily need to replace both at the same time. Often, the external battery wears out first because it handles a large share of your runtime. In other cases, a very old T480 may need both replaced to feel “like new” again.

---

3. Signs it’s time to replace your T480 battery

Rather than replacing on a fixed schedule, it’s better to watch for specific warning signs:

1) Noticeably reduced battery life

• The laptop used to last most of the day, but now it dies after a couple of hours (or less).
• You find yourself constantly looking for a power outlet, even with moderate usage.

2) Big jumps in percentage or sudden shutdowns

• The battery jumps from, for example, 35% to 10% very quickly.
• The T480 shuts down unexpectedly even though Windows shows remaining charge.

3) Battery health reports show low capacity

• Tools like Lenovo Vantage or powercfg /batteryreport in Windows show that “Full charge capacity” is much lower than the original design capacity.
• For example, a pack designed for 24Wh now only reports 12–15Wh.

4) External battery not detected or not charging

• Windows or Lenovo Vantage no longer shows the external battery at all.
• The external battery stays at 0% or never increases, even when plugged in.

If you see one or more of these symptoms, it’s usually a clear sign that at least one of your T480 batteries should be replaced.

---

4. Should I replace the T480 battery on a schedule?

There’s no strict requirement to replace T480 batteries every X years. Instead, think in terms of performance and reliability:

• If your T480 still comfortably covers your work sessions on battery, you don’t need to replace anything yet.
• If your runtime or stability is causing problems, it’s time to plan a replacement.

However, as a guideline:

• For business-critical / travel-heavy use, many people proactively replace batteries around the 3-year mark to avoid surprises.
• For home or occasional use, you can simply wait until capacity loss becomes annoying.

---

5. Replace internal, external, or both?

Because the T480 has two batteries, you can choose to replace one or both, depending on your situation.

Option A: Replace only the external battery

This is the most common and easiest first step:

• The external 61-series battery is simple to remove and swap.
• If your internal 24Wh pack still has decent health, a fresh external pack can restore most of your runtime.

For example, you can choose between:

Option B: Replace only the internal battery

If your external battery is still performing well but you notice rapid drops when you swap or disconnect it, the internal 24Wh battery may be the problem. Replacing it restores the core of the Power Bridge system.

Option C: Replace both internal and external batteries

If your T480 is several years old and both packs show low capacity, the best experience comes from replacing both batteries at the same time. This essentially “resets” your power system and can make an older T480 feel much more modern and reliable.

---

6. Usage profiles: when to plan your replacement

You can also think about replacement timing based on how you use the laptop:

Light / home user

• Use: browsing, email, occasional work.
• On battery a few hours per week.
• Plan: Replace when battery life becomes annoyingly short – often after 3–5 years, not on a fixed schedule.

Office / business user

• Use: daily office work, meetings, travel between rooms or locations.
• Frequent battery use, but often some time on AC each day.
• Plan: Expect to replace at least the external battery roughly every 2–4 years. Consider proactive replacement around year 3 if reliability is important.

Heavy mobile / travel user

• Use: long flights, field work, heavy apps on battery.
• Many deep discharge cycles and more heat.
• Plan: You may need new batteries in 1.5–3 years. It’s reasonable to treat batteries as consumables and budget for replacements.

---

7. How to extend the life of your T480 batteries

If you want to replace batteries less often, a few habits can help:

• Keep temperatures under control: Don’t block the vents, avoid gaming on soft surfaces, and clean dust periodically.
• Avoid constant 0–100% cycling: Try not to fully drain to 0% every time. Shallow discharges are kinder to lithium-ion cells.
• Don’t store it fully drained: If you won’t use the laptop for a while, store it around 40–60% charge.
• Use balanced power profiles: Lower screen brightness and disable unnecessary background apps to reduce strain.

These tips won’t stop aging, but they can slow it down, giving you more useful years before replacement becomes necessary.

---

8. Summary: how often should you replace your T480 battery?

There’s no single “expiration date” for a ThinkPad T480 battery, but you can use these guidelines:

• Most users will consider replacement somewhere around 2–4 years of regular use.
• Heavy users may need a new battery in 1.5–3 years, especially if they rely on long runtimes away from power.
• Light users can often continue with the original batteries for 3–5+ years, until reduced runtime becomes annoying.
• Watch for symptoms like short runtime, sudden drops, shutdowns or low health in battery reports – these matter more than the calendar.

When the time comes, you don’t have to replace your T480 – just renew its power system. With a fresh internal 24Wh pack and a new external 61-series battery that matches your needs, your T480 can stay a reliable daily companion for many more years.

The Lenovo ThinkPad T480 is well-known for its excellent battery life and business-friendly design. One of the most common questions people ask is:

“Does the T480 have two batteries?”

The short answer is: yes – most T480 configurations use Lenovo’s Power Bridge system, which combines an internal battery with a removable external battery. This design lets you swap the rear battery without shutting the laptop down and gives you flexible options for total capacity.

In this blog, we’ll explain how the dual-battery system works, what capacities are available, and how you can replace or upgrade each battery in your T480.

---

1. The T480 dual-battery (Power Bridge) concept

On the ThinkPad T480, Lenovo uses a clever dual-battery layout:

• One internal battery – built into the chassis (not for everyday removal, but replaceable)
• One external, removable battery – attached to the back of the laptop

Both batteries work together to power the laptop. When the external battery runs low, the T480 can continue running from the internal battery for a short time, giving you a window to swap the external battery without shutting down or going into sleep. This is the essence of Lenovo’s Power Bridge technology.

So yes, in normal configurations, the T480 effectively has two batteries active at the same time.

---

2. The internal battery in the T480

Inside the ThinkPad T480, you’ll find a compact 3-cell, 24 Wh internal battery. This pack is screwed and plugged into the motherboard under the bottom cover.

Key points:

• Capacity: 24 Wh (3-cell)
• Location: Inside the chassis, under the bottom cover
• Role: Works together with the external battery and keeps the laptop alive during external battery hot-swap

When this internal battery ages and loses capacity, you can replace it with a compatible 24 Wh unit such as:

---

3. The external (removable) battery options

The second battery in the T480 is the rear, removable battery. This is the one you can slide out and swap without tools. Lenovo offers several capacities in the ThinkPad 61 battery family, all compatible with the T480 chassis:

• 24 Wh 3-cell (Battery 61) – slim and light
• 48 Wh 6-cell (Battery 61+) – balanced size and runtime
• 72 Wh 6-cell extended (Battery 61++) – maximum runtime, larger “bump” on the back

These external packs are what make the dual-battery system so flexible. You can choose a small, light battery for short trips or a large one for long days away from power.

---

3.1 24Wh external battery – slim and lightweight

If you want the T480 to stay as close as possible to its original slim profile, the 24 Wh external 3-cell battery is the best match. Combined with the internal 24 Wh pack, you get around 48 Wh total capacity.

Typical features:

• Capacity: 24 Wh (3-cell)
• Profile: Very low, minimal extension at the back
• Best for: Users who carry the laptop a lot and plug in regularly during the day

---

3.2 48Wh external battery – best balance for many users

The 48 Wh 6-cell external battery (often referred to as Battery 61+) is the “sweet spot” for many T480 owners. It adds more capacity without making the laptop overly bulky.

Combined with the internal 24 Wh, you get around 72 Wh total, which is enough for long meetings, classes and mobile work days (actual hours depend on workload and settings).

Typical features:

• Capacity: 48 Wh (6-cell)
• Profile: Slight “bump” at the back that can tilt the keyboard for comfortable typing
• Best for: Business travelers, students and power users who need several hours of real-world runtime

---

3.3 72Wh external battery – maximum runtime

If you want the longest possible battery life, the 72 Wh extended external battery (Battery 61++) is the top choice. It adds a noticeable “hump” at the back and increases weight, but the payoff is excellent runtime.

Paired with the internal 24 Wh battery, you reach around 96 Wh total capacity, which is ideal for long flights, field work or full days away from power.

Typical features:

• Capacity: 72 Wh (extended 6-cell)
• Profile: Extended pack that raises the rear of the laptop
• Best for: Users who prioritise runtime over weight and compact size

---

4. Can the T480 run on one battery only?

Yes. Even though the T480 supports two batteries, it can run with:

• Only the internal battery – if you remove the external pack
• Only the external battery – if the internal battery is drained or has very low capacity (though this is not ideal)

However, you get the best experience and runtime when both batteries are installed and healthy. The Power Bridge system is designed to juggle both packs intelligently, making sure you get the most from your T480’s power system.

---

5. How to check if both batteries are detected in Windows

To confirm that your T480 is using its two batteries correctly:

1. In Windows 10/11, click on the battery icon in the taskbar.
2. Often, you will see a combined percentage, but detailed battery tools (like Lenovo Vantage or Powercfg /batteryreport) show two separate entries:
   • Battery 1 – usually the internal battery
   • Battery 2 – the external removable battery

If only one battery appears, either one of the packs is missing, not connected properly, or has failed and may need replacement.

---

6. Summary: does the T480 have two batteries?

In most configurations, the answer is a clear yes:

• The ThinkPad T480 uses an internal 24 Wh battery plus a removable external battery in the 61-series family.
• You can choose between 24 Wh, 48 Wh or 72 Wh for the external pack, depending on how much runtime you need.
• The dual-battery Power Bridge design lets you swap the external battery without shutting the system down.

If your T480 no longer lasts as long as it used to, refreshing both the internal and external batteries is one of the best upgrades you can make—restoring the original endurance that made this ThinkPad such a favourite among business users and power users alike.
