Description
Product Information
- Item Condition: Brand New
- Color: White
- Capacity: 5120mAh/39Wh
- Output Voltage (Volts): 7.7 Volts
- Number of Cells:2 Cells
- Package Included: 1 x Battery for Samsung
- Warranty: 12 Months / 30-Day Return
Compatible Part Numbers (not all):
Samsung AA-PBUN4AR
Compatible Model Series (partial list):
Samsung 900X5L
Samsung 940X3L
Samsung ATIV Book 9 Spin 940X3L
Samsung Notebook 9 900X5L
Samsung Notebook 9 NP900X5L
Samsung Notebook 9 NP940X3L
Samsung Notebook 9 Spin 940X3L
Samsung NP900X5L Series

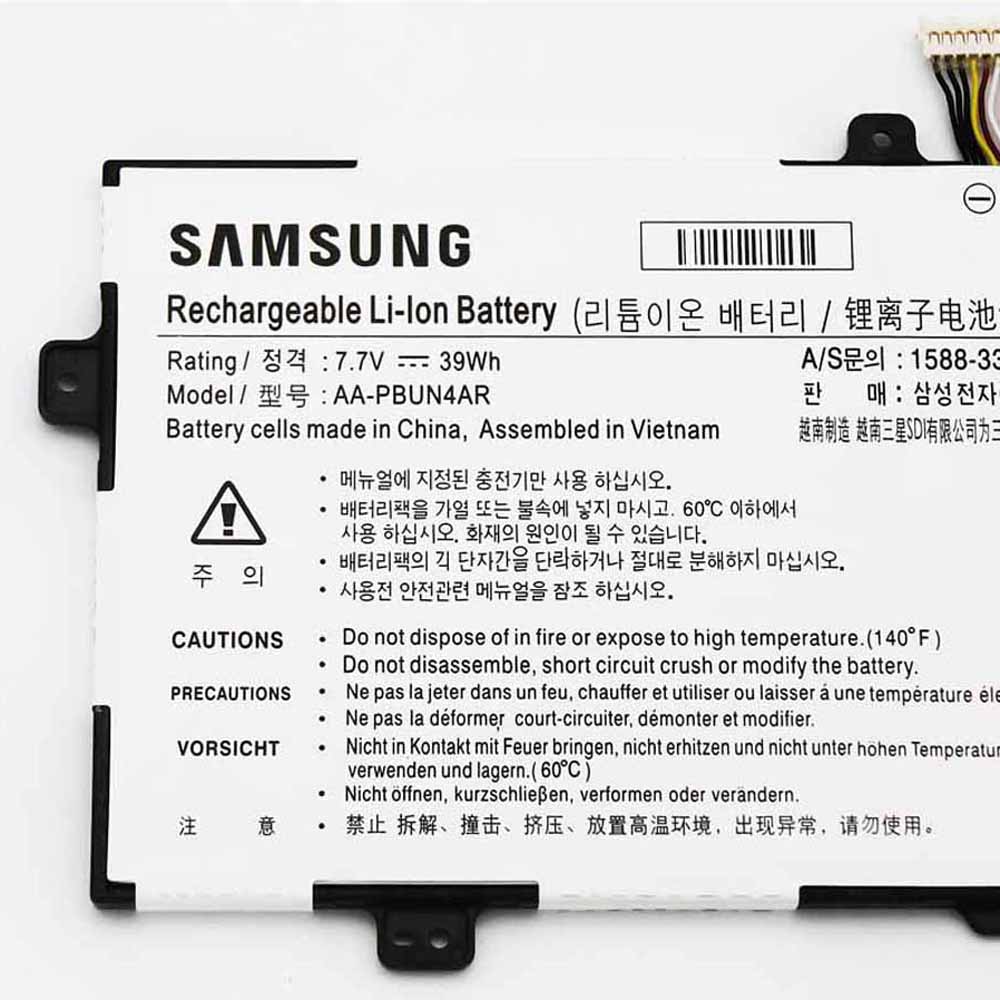

Premium 39Wh Battery for Samsung Notebook 9 & 9 Spin
Restore the legendary stamina of your ultrabook with our AA-PBUN4AR replacement battery. Precision-engineered for the Samsung Notebook 9 900X5L and the 360-degree 9 Spin (940X3L) series, this 7.7V battery utilizes high-density lithium-polymer technology to provide 39Wh of power in an ultra-slim 2-cell form factor.
Technical Specifications
| Part Number | AA-PBUN4AR |
| Voltage | 7.7 Volts |
| Capacity | 5120 mAh / 39 Wh |
| Cell Configuration | 2-Cell Lithium-ion Polymer |
| Condition | Brand New |
| Warranty | 12 Months / 30-Day Return |
Compatibility Checker
Specifically designed for the 13.3″ Spin and 15″ Notebook 9 chassis. Please verify your model number located on the bottom of your device.
Primary Compatible Part Number:
AA-PBUN4AR
Fits Laptop Models:
- Samsung Notebook 9 900X5L
- Samsung Notebook 9 Spin 940X3L
- Samsung ATIV Book 9 Spin Series
- Samsung NP900X5L Series
- Samsung NP940X3L Series
Installation & Handling Guide
- Precision Installation: This is an internal battery. Due to the ultra-thin magnesium chassis of the Notebook 9, please use a precision screwdriver and handle the bottom panel with care to avoid bending the light-weight alloy.
- Connector Alignment: The 7.7V system requires a perfect electrical contact. Ensure the battery’s multi-pin plug is pushed straight into the motherboard socket. Do not apply force at an angle.
- Optimization: For new polymer cells, it is recommended to perform 2-3 cycles of charging to 100% and discharging to 10% to ensure the OS accurately calculates the remaining runtime.
Frequently Asked Questions
Q: Does this battery fit the regular Notebook 9 13-inch (900X3L)?
A: No. The standard 900X3L (13-inch non-spin) uses a smaller 30Wh battery (AA-PBUN2TP). This AA-PBUN4AR is exclusively for the 940X3L Spin and the 15-inch 900X5L.
Q: Is the color of the battery casing important?
A: This unit comes in the standard white/light-grey casing as per original specifications. Since it is an internal battery, the color will not be visible once the laptop is reassembled.
